We're Hashicorp partners, however up until now we've kept our experience and deployments firmly in the cloud. We wondered if the Hashicorp tooling would help us in other situations, and found that it performed even better than we had hoped.

Matt Wallace (one of our Directors) decided to take the plunge over the Christmas and New Year break and apply the Hashicorp stack (plus a few other goodies) to his home management setup...

In part one I covered the technology I'd be using and the architecture. In this post I'll go into more detail about how each component is configured, including configuration files and why I've taken those particular decisions.


The naming of parts

There's an old joke in the IT industry which goes "There are two hard things in computer science: cache invalidation, naming things, and off-by-one errors."

The need for the rest of the family to be able to access the homeassistant.io control panel, 3D Printer Server, or other things on the network means that I needed to resolve services by hostname rather than by IP address, which meant I had to tackle the picking of a domain.

The network diagram for the mini cloud setup

Think very carefully about what you're going to use as a domain. Once it's been set, it's very difficult to change it without a rebuild of Consul

To keep things simple, I decided on a one-word domain which would be easy to remember, however it's just as easy to stick with the default ".consul" domain and we'll use that in our examples here.


The order of things...

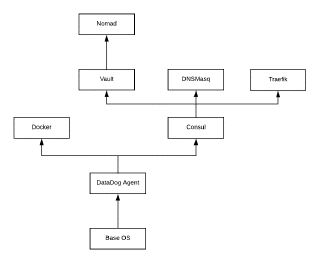

The order in which things need to be installed

Although this is a home network/lab setup, we still need to ensure that we install the components in the correct order. To do this, I'm using Ansible and the following roles:

(The installation and configuration of DNSMasq is carried out by the Consul role.)

The process of installation follows what has become my standard method of deployment over the years - install the base operating system (in this case CentOS Linux), then install monitoring so we know when something goes wrong, and then install everything else.


The code

The code for the project is available on Github.com so we won't replicate it here, however we will explore each of the components in turn, discussing the configuration changes and smoe of the reasoning behind things on the way.

The Operating System

I've been using Linux as my primary operating system both at home and at work for nearly 20 years, so this server was always going to run Linux. The decision was then which flavour to use.

Many "home linux server" tutorials will suggest that you use Ubuntu, and Canonical's ease of use and setup has certainly made it the desktop OS of choice for thousands of users around the world, however in my professional life I encounter far more companies using either RedHat Enterprise Linux (RHEL), or the Open Source community distribution CentOS which is based on RHEL.

I wanted this server to be as close to the production environments that I manage as possible so I chose CentOS. I also chose to set SELinux to "Enforcing" mode, because this is our default setup for client solutions.

The Monitoring

As mentioned in part 1 of this series, we're Datadog partners, so it made sense to use Datadog to monitor the server.

The wide range of plugins available includes all of the components of this particular platform, and as you get five hosts with ten containers per host as part of the "free" tier, it wasn't going to cost us any extra either.

Part of the Docker Dashboard in DataDog
An example of docker monitoring in DataDog
Part of the Consul Dashboard in DataDog
An example of consul monitoring in DataDog

The DataDog documentation on enabling monitoring for Docker, Consul, Nomad, Nomad, Vault, and Traefik is excellent, so we won't go into the detail of configuring monitoring for the services apart from to remind you to set your datadog_api_key variable in your Ansible vault secrets file as stated in README file.

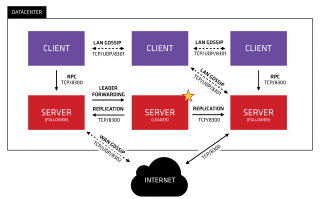

The Hashicorp Consul Reference Architecture
Consul and Service Discovery

Consul is the magic that brings everything together. Instead of trying to remember whether the 3d printer is at 192.168.1.2 or 192.168.1.90, Consul's built-in service discovery via DNS means that anything registered with Consul appears at <service_name>.service.consul, so as long as you know what the service is called, you can easily find it in a browser.

There are a number of ways you can register a service with Consul, including via a Consul Agent which runs on each host, or via calls to the Consul HTTP API, however in our case because we're managing our containers using Nomad we get service registration for free!

The key to the automatic service discovery is integrating Nomad and Consul, and then adding a service stanza to your Nomad job description like the one I've created for Octoprint:


      service {
        name = "octoprint"
        tags = ["octoprint"]
        port = "octoprint"
        check {
          name     = "alive"
          type     = "tcp"
          interval = "10s"
          timeout  = "2s"
        }
      }



There will be more about creating a Nomad job later in the post, however this snippet takes a predefined network port and registers it as a named service within Consul along with a basic TCP connection check to ensure that the end-point is still alive, allowing us to see the Octoprint UI at http://octoprint.service.consul.

Finally, the Ansible play configures DNSMasq (a lightweight DNS server) to listen on port 53 and forward requests to Consul, allowing us to reference the host machine as a primary DNS server on our network and "automatically" lookup the services we register.

Vault and Secrets Management

Vault isn't strictly necessary for my home setup right now however as this will also be a lab for playing with new technology, it made sense to add it from the beginning rather than retro-fit it.

As with the other tools we install Vault using Ansible, however when it gets to the point that Vault API reachable? is being repeated on the screen, you will need to SSH in to the server and run the operator init and operator unseal commands.

How Vault works. (Image © Hashicorp)

You will need to run the operator unseal process each and every time you reboot the server or restart the vault service, so make sure you store the keys generated by operator init somewhere safe!

Once the vault is unsealed, we need to generate a token for Nomad to use. This allows Nomad and the containers that it orchestrates to create and access secrets in Vault including passwords, certificates, API Keys, and pretty much anything else you want to be able to store.

In the first instance, we want to make sure that Vault and Nomad are talking to each other without having to troubleshoot Vault policies, so we'll use the root token that was generated for us as part of the init process.

Switching to Vault Policies is something that will be addressed in a future blog post as it is too involved to include here, you should never grant Nomad root access to Vault in a production environment.

Add the vault root token to the Ansible configuration by creating an Ansible Vault file at inventory/group_vars/docker_instances with the following content:


---
nomad_vault_token: <The Vault Root Token>



Now re-run Ansible against the server, Nomad will be configured with the appropriate token, and you will be able to authenticate against Vault and retrieve the secrets.

Containers and Orchestration

Although Docker and Nomad aren't at the same level on our order of precedence diagram, they are so tightly connected that we'll discuss them both here.

Many people are familiar with the Docker/Moby project and related frameworks even if it's only through packaging and running a "Hello World" container to test things out, however when you start to run hundreds of containers across multiple hosts you start to run into issues with how to maintain and orchestrate those workloads.

Docker is probably the most popular container format out there, so it made sense for me to use it as well. The Dockerfile format is reasonably well documented, and the Docker Hub contains pre-built containers for most of the software you'd ever need to run, however when we've run the Docker Swarm orchestration layer in production environments in the past, we've had issues with changes not being backwards compatible and a release cycle that's so fast it's difficult to get support.

As I wasn't going to use Docker Swarm, and I'd ruled out Kubernetes as well, I settled on Nomad as my orchestration tool.

Both Docker and Nomad were installed using Ansible, and as Nomad provides native support for Docker no configuration was required.

Why not Kubernetes? I considered using Kubernetes because it seemed to be the most popular choice, however it's designed for a large cluster of hosts and whilst there are scripts available to get it all running on one host it felt like to many moving parts for this particular use case.

I've put some example Nomad configuration files into the git repository, however as an example of running the Redis database server on Docker, you just define a task as follows:


task "webservice" {
  driver = "docker"

  config {
    image = "redis:3.2"
    labels {
      group = "webservice-cache"
    }
  }
}



Now when you run nomad job run against the file, it will schedule an instance of the Redis container onto the host.

Traefik

Traefik is billed as a "dynamic, automated, cloud native edge router". That's a lot of buzzwords, but essentially it will sit facing the public access points to your network and provide reverse proxying and load balancing from DNS entries to the provided hosts and ports on the network behind it.

One of the main reasons for chosing Traefik over Nginx or other options is that it has native support for Consul as a service catalog, and will add and remove new services without needing a restart. I've found in the past that even when using consul-template and Nginx there can be brief outages when adding and removing new services.

Configuring Traefik is pretty easy, you just need to set the Consul Catalog and point it to the Consul cluster. Traefik takes over from there and any service that registers in Consul will automatically be served over http (or another protocol if configured that way).

It is possible to configure Traefik to use LetsEncrypt to serve TLS traffic (HTTPS etc), however in order to do that you need to either expose Traefik to the internet or have a domain that will resolve externally from the house.

As we have neither of these in our example (and I don't intend to allow traffic from the internet into the house other than via a VPN connection, we will skip this configuration for now, however the documentation on the Traefik website is excellent and includes how to link into most DNS providers automatically if you choose the DNS Challenge route.

The only thing left to do is configure your router to set .consul as your local domain, and ensure that the DHCP settings set your new host as the primary DNS server for all devices on the network.

A sample Traefik configuration file

{#
    Check traefik sample for full config options
    https://raw.githubusercontent.com/containous/traefik/master/traefik.sample.toml
#}

# Entrypoints to be used by frontends that do not specify any entrypoint.
# Each frontend can specify its own entrypoints.
#
# Optional
# Default: ["http"]
#
defaultEntryPoints = ["http"]

# Entrypoints definition
#
# Optional
# Default:
[entryPoints]
    [entryPoints.http]
    address = ":80"

logLevel = "INFO"

[docker]
endpoint = "unix:///var/run/docker.sock"
domain = "consul"
watch = true

[consul]
endpoint = "127.0.0.1:8500"
watch = true
prefix = "traefik"

[consulCatalog]
endpoint = "127.0.0.1:8500"
domain = "service.consul"
exposedByDefault = true
prefix = "traefik"

[api]
  entryPoint = "traefik"
  dashboard = true
  debug = true



The summary

Over the past two blog posts, we've looked at setting up a home network/lab server using the Hashicorp stack and Traefik. If you've followed along and used the Ansible playbooks as well as the example Traefik configuration, you should now have Vault, Consul, Nomad, Docker, and Traefik all running on a single host and automatically publishing services that are registered in Nomad.

We've added a sample Nomad job configs to the git repository to get you up and running with Home Assistant, and we'd welcome any improvements you might have to the repository or these articles so please do log Github issues and we'll get to fixing/adding things as soon as we can.
